MicroCool Flexible High-Pressure Nozzle Line
The continuous polyester construction provides strength and flexibility. Additionally, the core is wrapped in synthetic polyester for reinforcement. The outer cover is a durable, perforated polyurethane skin that is UV resistant, allowing installation in direct sunlight without rapid deterioration.

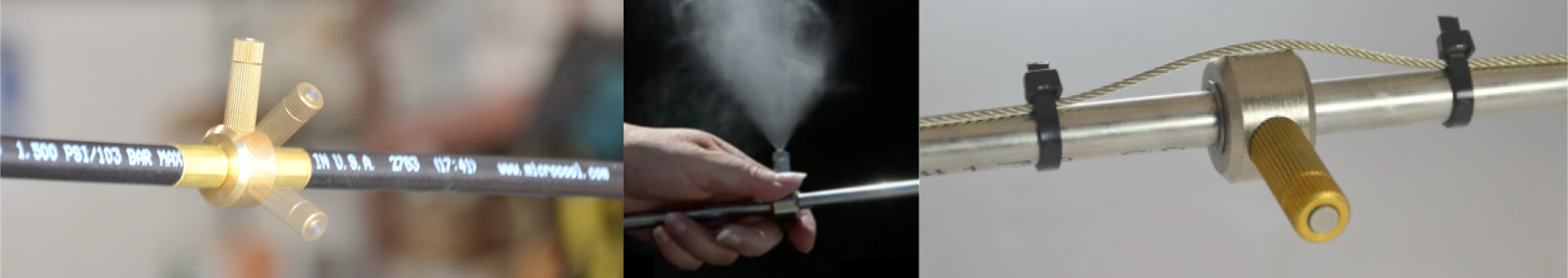

Nozzle spacing is customized for each installation and can be as close as 6 inches (150 mm) but is generally 3 feet (1 m) or wider. Brass barbs and sleeves are factory crimped for permanent attachment while still allowing convenient "no tools required" orientation of the nozzle.
The standard 330 ft. (100 meters) spool length is easy to work with and allows for fast and simple installation with a minimum of labor. Aptly named, the flex line is pliable enough to be positioned in concealed locations to insure an aesthetically pleasing installation.
Specifications
| Length: Continuous to 330 ft.(100 M) | Temp. Range: 32.0°F to 135.0°F |
| Nominal ID: 1/4 inches (6.4 mm) | Coeff. Exp./Cont: +/- 2% |
| Max OD: 0.487 inches (12.4 mm) | Barb & Crimp: Brass |
| Weight: 4.5 lbs. / 100 feet | Nozzle Port: 12/24 UNC |
| Weight: 6.7 Kg / 100 m | Nozzle Swivel: 360° |
| Bend Radius: Min. 3 inches (91 mm) | Nozzle Spacing: Min. 6 inches (150 mm) |
| Working Pressure: 1,000 psi (70 bars) | Custom Spacing: Available |
| Min. Burst Pressure: 6000 psi (414 bars) | Packaging: Max. 330 ft. (100 m) per box |
