Rhino Pump System

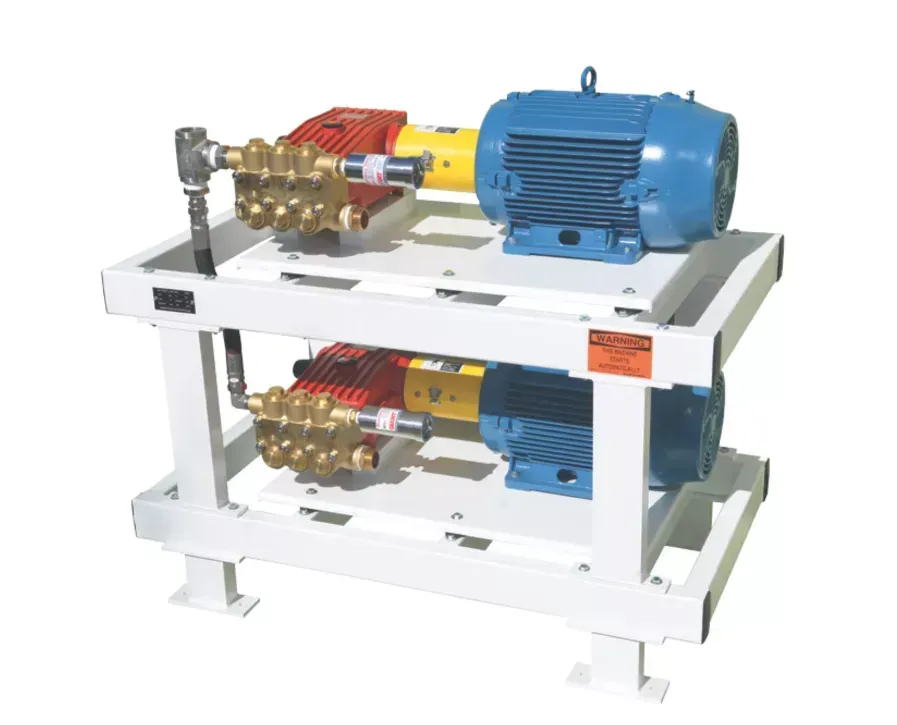

The Rhino pump unit can support up to 640 nozzles when used individually and up to 1,920 nozzles when pumps are combined. The unique frame construction is designed for growth and flexibility as it allows up to 3 units to be stacked together. The solid frame construction permits the units to be mounted inside a factory or greenhouse installation.
The Rhino series of pumps have been designed for industrial and commercial use. Each pump module is supplied with:
- Giant triplex plunger pump producing 1,000 psi
- WEG high efficiency TEFC motor and Variable Frequency Drive (VFD)

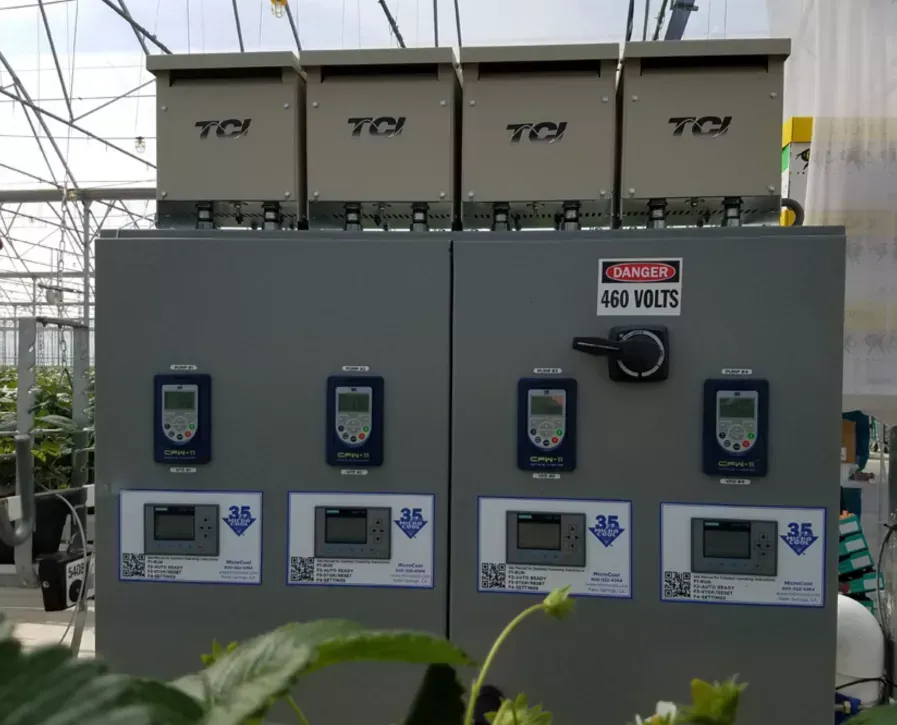

- Siemens logic control and HMI display panel
- UL 508A listed control panel
- Integrated 1,000 psi / 70 bars pressure transducer
- Low water pressure safety shutdown with automatic restart
- Powder coated, hot dipped galvanized steel frame and NEMA 3R control cabinet
- MicroCool energy/water conservation technology
- One year comprehensive warranty
Specifications for Single RHINO Pump
| Frame: 53 x 28 x 28 inches 1,346 x 711 x 711 mm |
Control Panel: 36 x 30 x 12 inches 915 x 762 x 305 mm |
| Frame Weight: 500 lbs / 227 kg | Control Panel Weight: 100 lbs / 45 kg |
| Pressure: 1,000 psi / 70 bars | Flow Max: 16 US gpm / 5,480 lbs/hr |
| Voltage: 480-600v 3 phase | Flow Max: 41.6 lpm / 2,500 kg/hr |
| HP / kW: 15 hp / 5.6 kW | Gauges: Inlet and filter differential pressure |
| FLA (motor): 21 amps @460V/3ph | Connections: 1" NPT out / 3/4" NPT in |
| Filters: 1 x 20 inch, 5 micron Big Blue (11.5" dia.) | Frame: Powder coated, hot dipped galvanized steel (white) |
| UV Filter Option: Yes | Control Panel: UL 508A |
Warranty
OG Industries, LLC warrants that the MicroCool goods to be delivered will be of the kind and quality described in the sales order or contract, and will be free of defects in workmanship or material. Refer to RHINO Series Instal- lation & Maintenance Manual for full terms of limited warranty.
Availability & Cost
MicroCool equipment is available from OG Industries, LLC. Contact us about availability and pricing information.
Installation & Warranty
Refer to the RHINO Series Installation & Maintenance Manual for complete installa- tion instructions and system maintenance requirements.
